ABIT NV7-8X PRESENTATA

[re-voodoo]

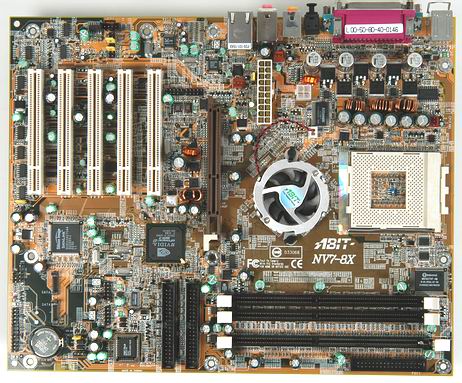

Abit in concomitanza al lancio delle nuove cpu Athlon XP 2700 e 2800+, ha presentato la scheda madre NV7-8X con chipset nVidia nForce 2, il miglior chipset da accoppiare alle nuove cpu AMD. l'nForce 2 supporta ovviamente il FSB 333Mhz, DDR 400Mhz, AGP 8X inoltre integra un audio di ottima qualità con supporto al Dolby Digital 5.1 e la sezione video è dedicata alla GeForce 4 MX.



Specifiche TECNICHE
CPU
l Supports AMD-K7 Duron / Athlon / Athlon XP Socket A 200/266/333 MHz FSB
Chipset
l nVIDIA nForce2 SPP chipset with MCP2-T
l Integrated 128-bit memory controller
l Supports Advanced Configuration and Power Management Interface (ACPI)
l Accelerated Graphics Port connector supports AGP 8X/4X (0.8V/1.5V)
Memory
l Three 184-pin DIMM sockets
l Supports 3 DIMM DDR 200/266/333 (Max. 3 GB)
l Supports 2 DIMM DDR 400 (Max. 2 GB)

Serial ATA
l On board Serial ATA PCI Controller
l Support SATA data transfer rates 150 MB/s (1.5G bps)

Audio
l 6-Channel AC 97 CODEC on board
l Professional digital audio interface supports 24-bit S/PDIF Out
l Supports real time AC-3 Encode by SoundstormTM Technology
LAN
l On board 10/10M LAN Physical layer interface
l 10/100Mb Operation support ACPI & Wake on LAN

IEEE 1394
l Supports IEEE 1394a at 100/200/400 Mb/s transfer rate

System BIOS
l SoftMenuTM Technology
l Award Plug and Play BIOS

Internal I/O Connectors
l 1 AGP 8X/4X slot, 5 PCI slots
l Floppy Port supports up to 2.88 MB
l 2 x Ultra DMA 33/66/100/133 Connectors
l 2 x Serial ATA 150 Connectors
l 2 x USB headers, 2 x IEEE 1394a header
l 2 x CD-IN
l 1 x IrDA
Back Panel I/O
l 1 x PS/2 Keyboard, 1 x PS/2 mouse
l 2 x Serial, 1 x Parallel
l 1 x S/PDIF Output
l Audio connectors (Front Speaker, Line-in, Mic-in, Center/Sub, Surround Speaker)
l 2 x USB, 1 x RJ-45 LAN Connector
Miscellaneous
l ATX form factor
l Hardware monitoring – Including Fan speed, Voltages, System environment temperature



Scritto Da - re-voodoo il 06 Ottobre 2002alle ore  20:48:44
